Author Topic: 2001 Audi RS4 Avus Silver  (Read 31935 times)

0 Members and 1 Guest are viewing this topic.

Offline le mans

  • ##
  • **
  • Posts: 2811
2001 Audi RS4 Avus Silver
« on: March 21, 2016, 02:28:56 pm »
Prompted by Ash, I’m going to put together a little history of my RS4 like I have for my RS2.

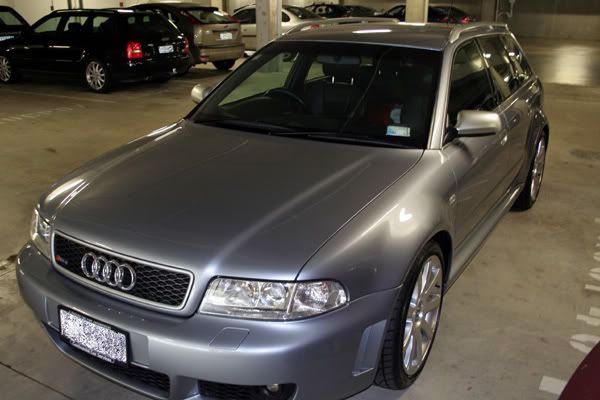

I bought it in November 2007 from CCS with 47,222km (according to carjam records).


« Last Edit: January 08, 2019, 11:20:00 am by le mans »
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #1 on: March 21, 2016, 02:29:46 pm »
Jan 2008

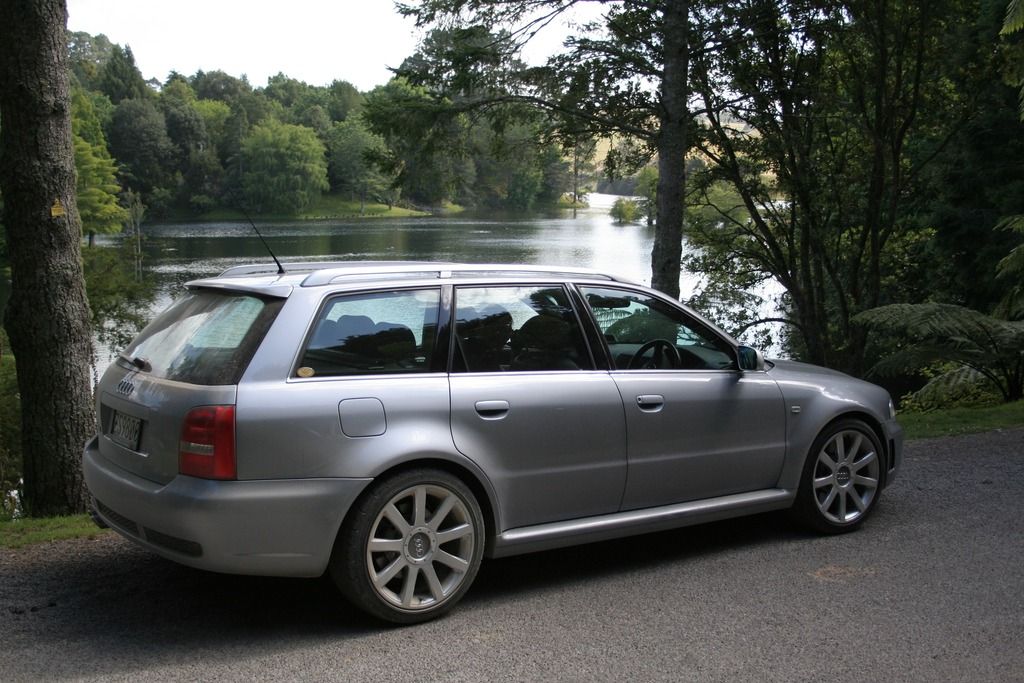

Getting it dusty on a drive to Tauranga:

« Last Edit: February 06, 2018, 09:08:35 am by le mans »
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #2 on: March 21, 2016, 02:30:46 pm »
May 2008

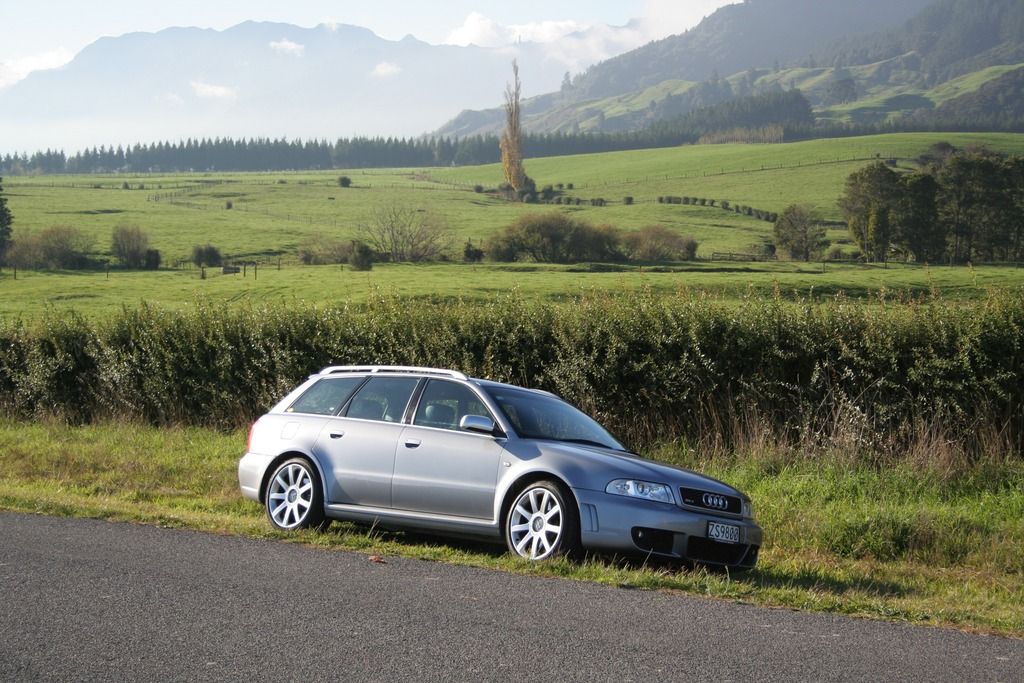

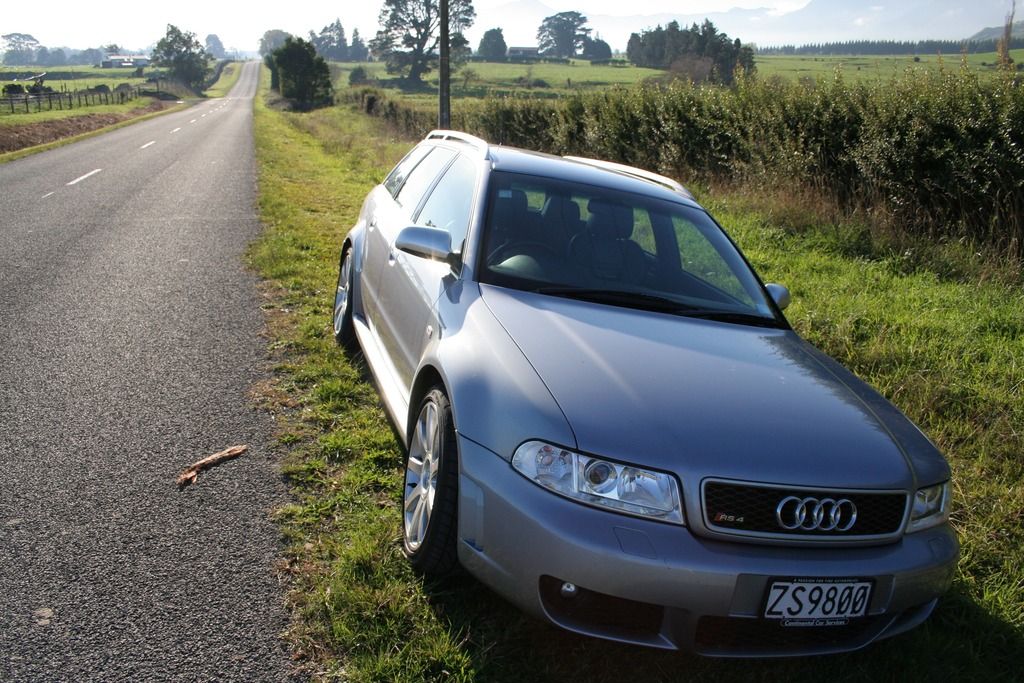

Old Te Aroha Rd:

« Last Edit: December 01, 2017, 02:11:36 pm by le mans »
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #3 on: March 21, 2016, 02:34:13 pm »
Oct 2008

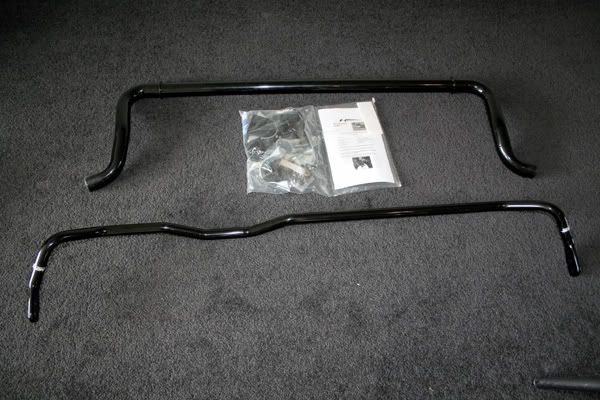

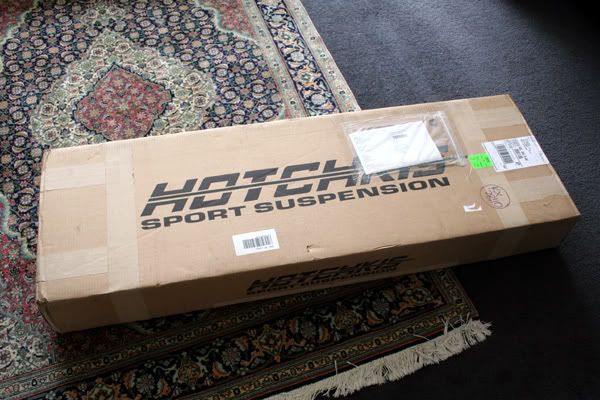

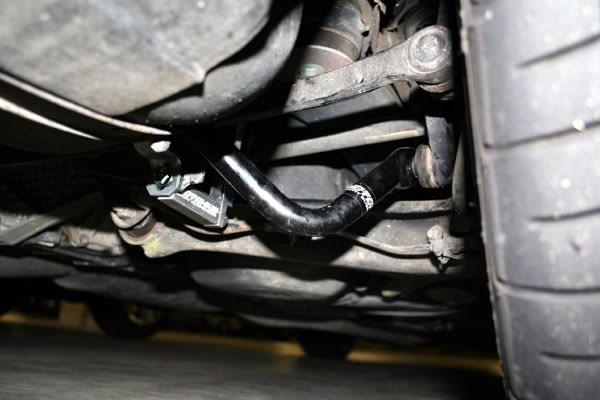

After owning a rather special B5 1.8TQ for a number of years, I was very impressed with the RS4s engine, but quite underwhelmed by the chassis. So after some research I bought a set of these from the US. They weren’t hugely expensive at the time but they go for around 700USD these days:





I have to say it made a massive difference to the roll control and general sharpness of the steering and handling.

Around this time I had the car remapped for the first time. This made it rather more rapid, more due to torque rather than max power.
« Last Edit: December 01, 2017, 02:11:57 pm by le mans »
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #4 on: March 21, 2016, 02:35:13 pm »
Nov 2008

I drove it like I stole it. My first ever track day (organised by Greg Spark aka Audidude): https://youtu.be/CjUikDxyV5c

Yes sacrilege I know to take a nice car on the track and yes no one will want to bye it off me (I'm keeping it forever anyway), but man lots of fun and you learn so much about driving and car control. And i figure if the car doesn’t break on the track it won’t break anywhere. Plausible?
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #5 on: March 21, 2016, 02:38:47 pm »
Dec 2008
Car on the dyno at the Torque Performance VASK dyno day that I organised:



They were concerned it wasn’t going open loop fuelling at WOT. The factory tune uses closed loop fuel and exhaust temp (EGT) sensors as protection against excessive temps (high temp triggers richer mixtures). Anyway, with a mapped car it’s prudent to run the mixtures richer at WOT to keep the temps down. This is what prompted me to later put the car back to the standard tune.
« Last Edit: December 01, 2017, 02:12:11 pm by le mans »
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #6 on: March 21, 2016, 02:40:11 pm »
Jan 2009

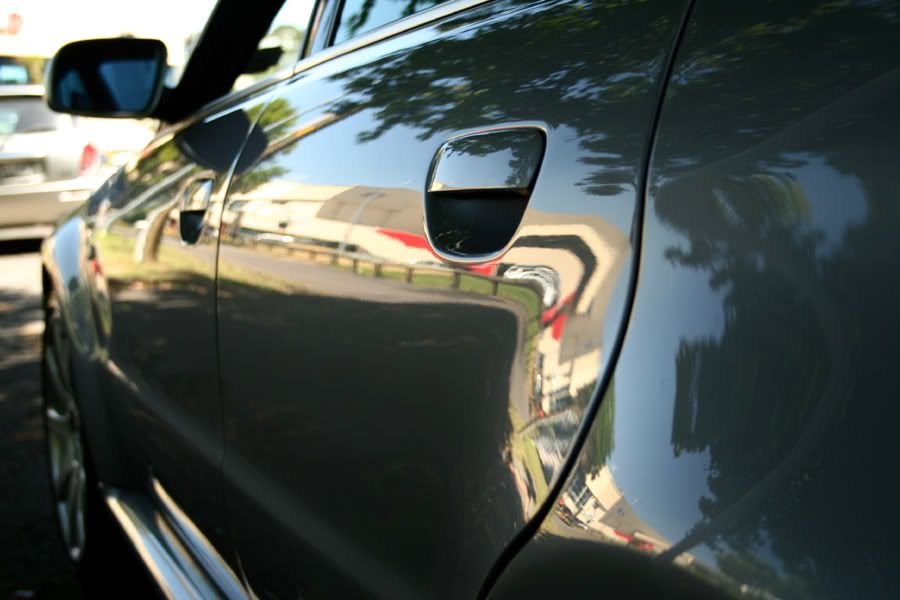

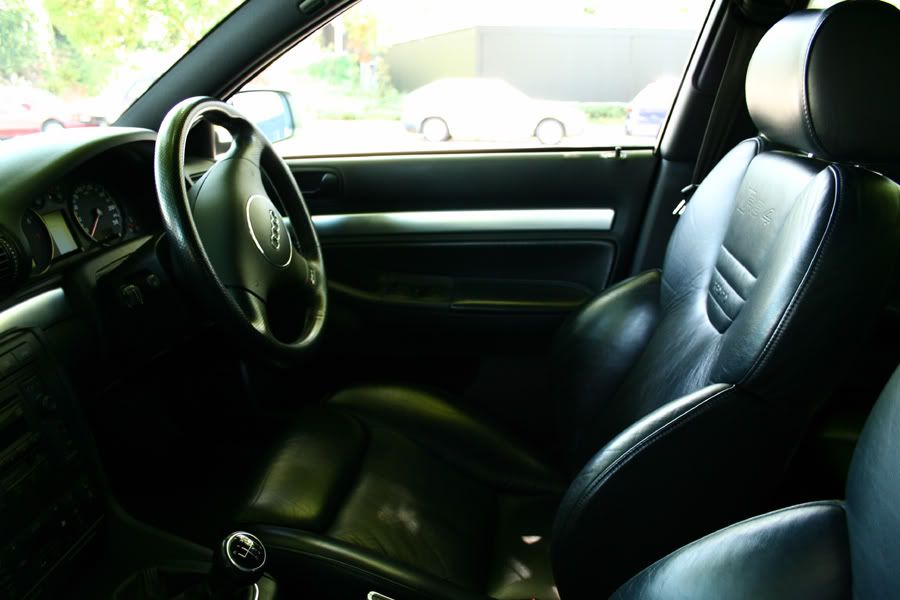

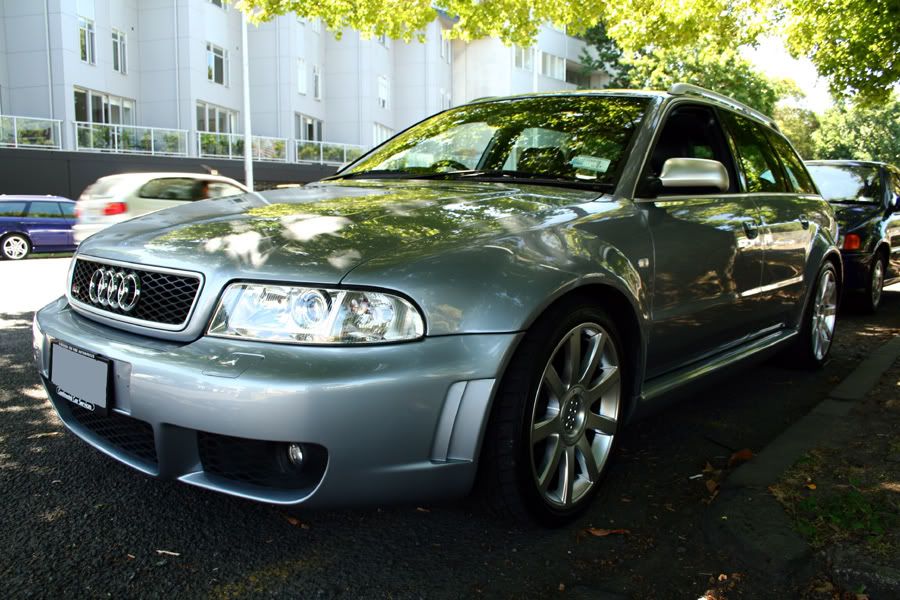

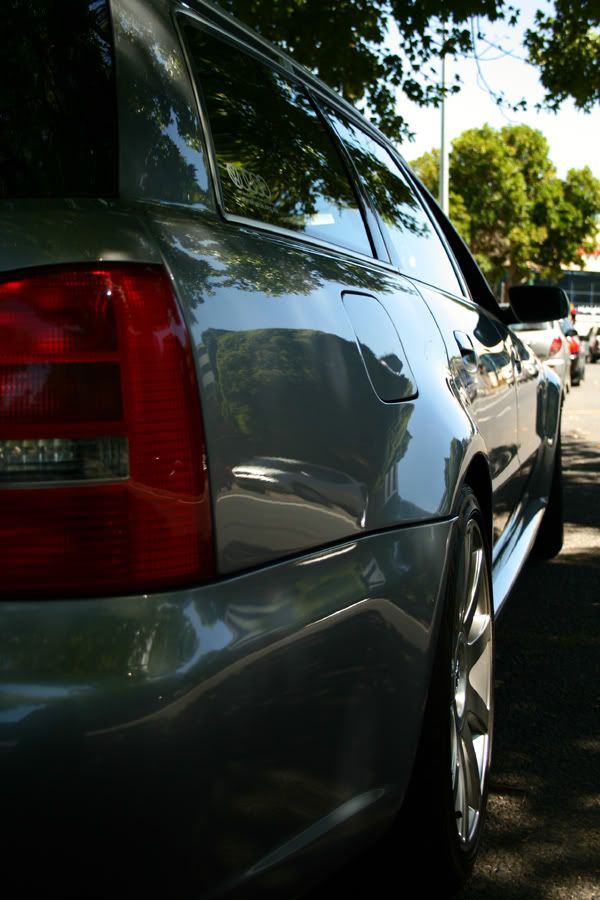

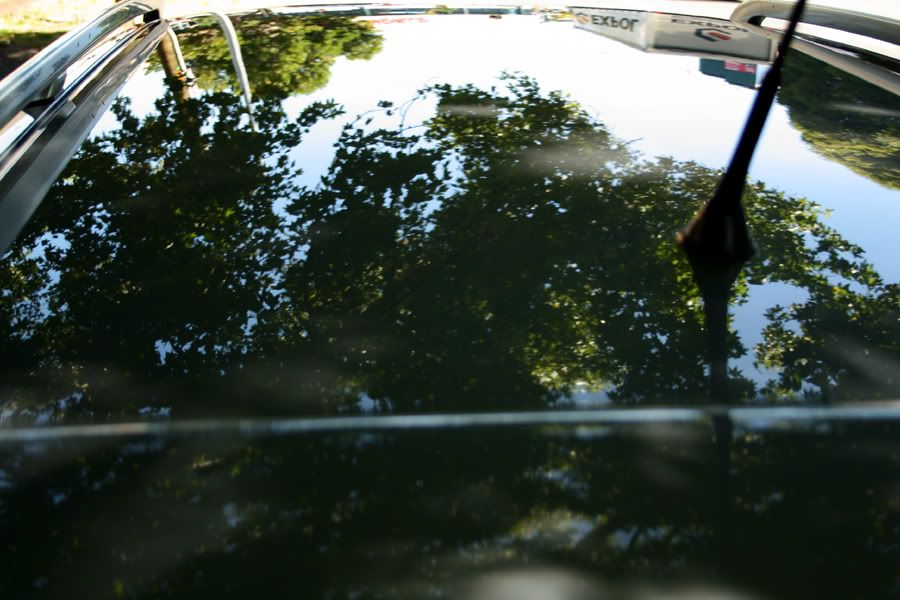

Gordon from final touch did a great job making it shiny:








That’s it for now. I will look at adding a few more posts over the next day or three.
« Last Edit: February 06, 2018, 09:09:25 am by le mans »
Logged

Offline RS ZWEI

  • Administrator
  • ####
  • *****
  • Posts: 19428
    • http://www.vask.org.nz
Re: 2001 Audi RS4 Avus Silver
« Reply #7 on: March 21, 2016, 08:59:14 pm »
Jon, do you still have the B5 Le Mans?
Logged
1980 VW Golf GTI Track Car
1995 Audi RS2
2003 Mini Cooper S (Written off - rear ended)
2005 Mini Cooper S
2006 Skoda Octavia vRS Combi
2009 Renault Megane 230 R26 (Written off - rear ended)
2013 Renault Megane RS265 Redbull RB8

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #8 on: March 22, 2016, 12:05:24 pm »
Quote from: RS ZWEI on March 21, 2016, 08:59:14 pm
Jon, do you still have the B5 Le Mans?
Yes indeed, still going strong and about to click over 170km. It's our family car these days.

« Last Edit: December 01, 2017, 02:12:49 pm by le mans »
Logged

Offline RS ZWEI

  • Administrator
  • ####
  • *****
  • Posts: 19428
    • http://www.vask.org.nz
Re: 2001 Audi RS4 Avus Silver
« Reply #9 on: March 22, 2016, 01:43:33 pm »
Quote from: le mans on March 22, 2016, 12:05:24 pm
Yes indeed, still going strong and about to click over 170km. It's our family car these days.

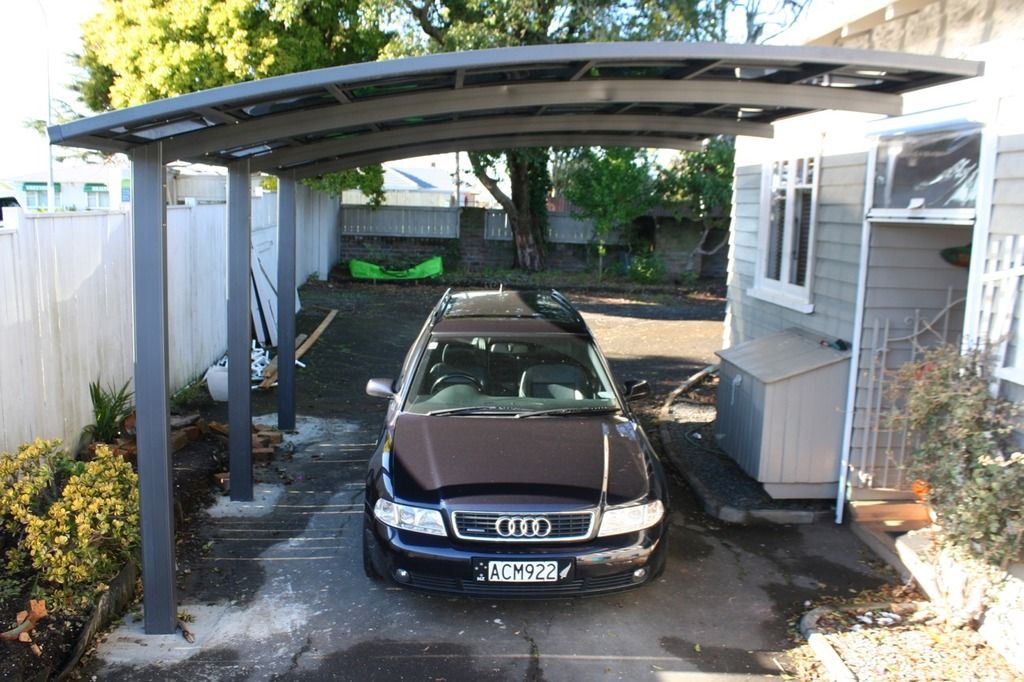

Cool. Like the new carport.
Logged
1980 VW Golf GTI Track Car
1995 Audi RS2
2003 Mini Cooper S (Written off - rear ended)
2005 Mini Cooper S
2006 Skoda Octavia vRS Combi
2009 Renault Megane 230 R26 (Written off - rear ended)
2013 Renault Megane RS265 Redbull RB8

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #10 on: March 22, 2016, 03:02:00 pm »
Mar 2009

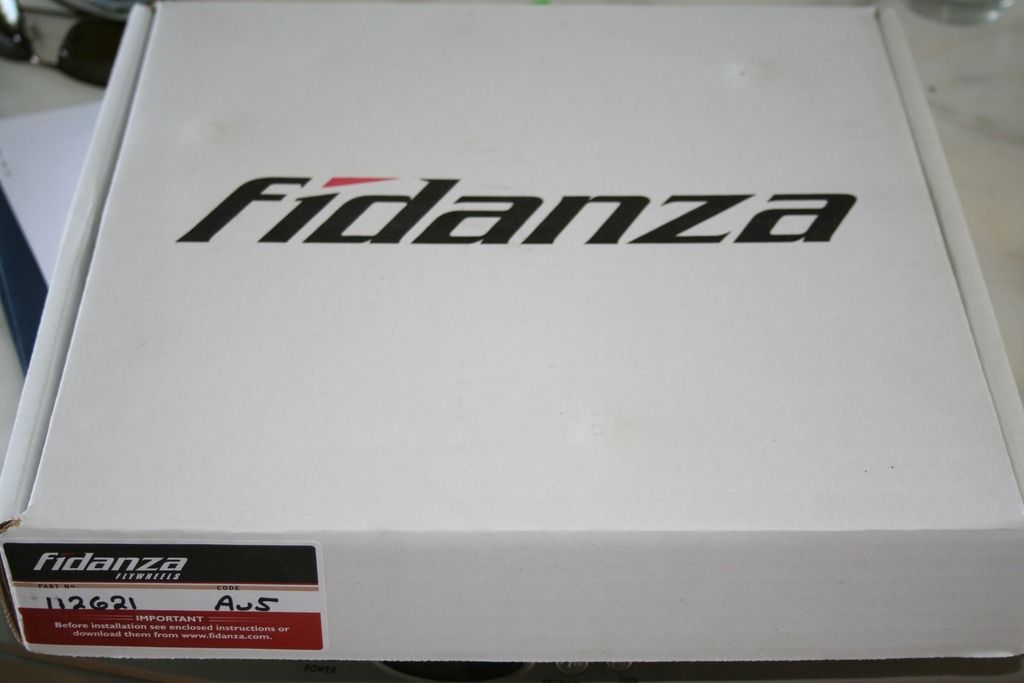

Bought and installed this along with brand new factory RS4 clutch.



Pluses: Engine more free revving, able to blip the throttle on down shifts, direct torque feedback from the powertrain, easier to achieve smooth gear shifts.
Minuses: lose some rotational inertia at low engine speeds (not really an issue with the V6), lack of vibration damping at low engine speeds when under load.
« Last Edit: February 06, 2018, 09:09:58 am by le mans »
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #11 on: March 22, 2016, 03:03:39 pm »
Jun 2009

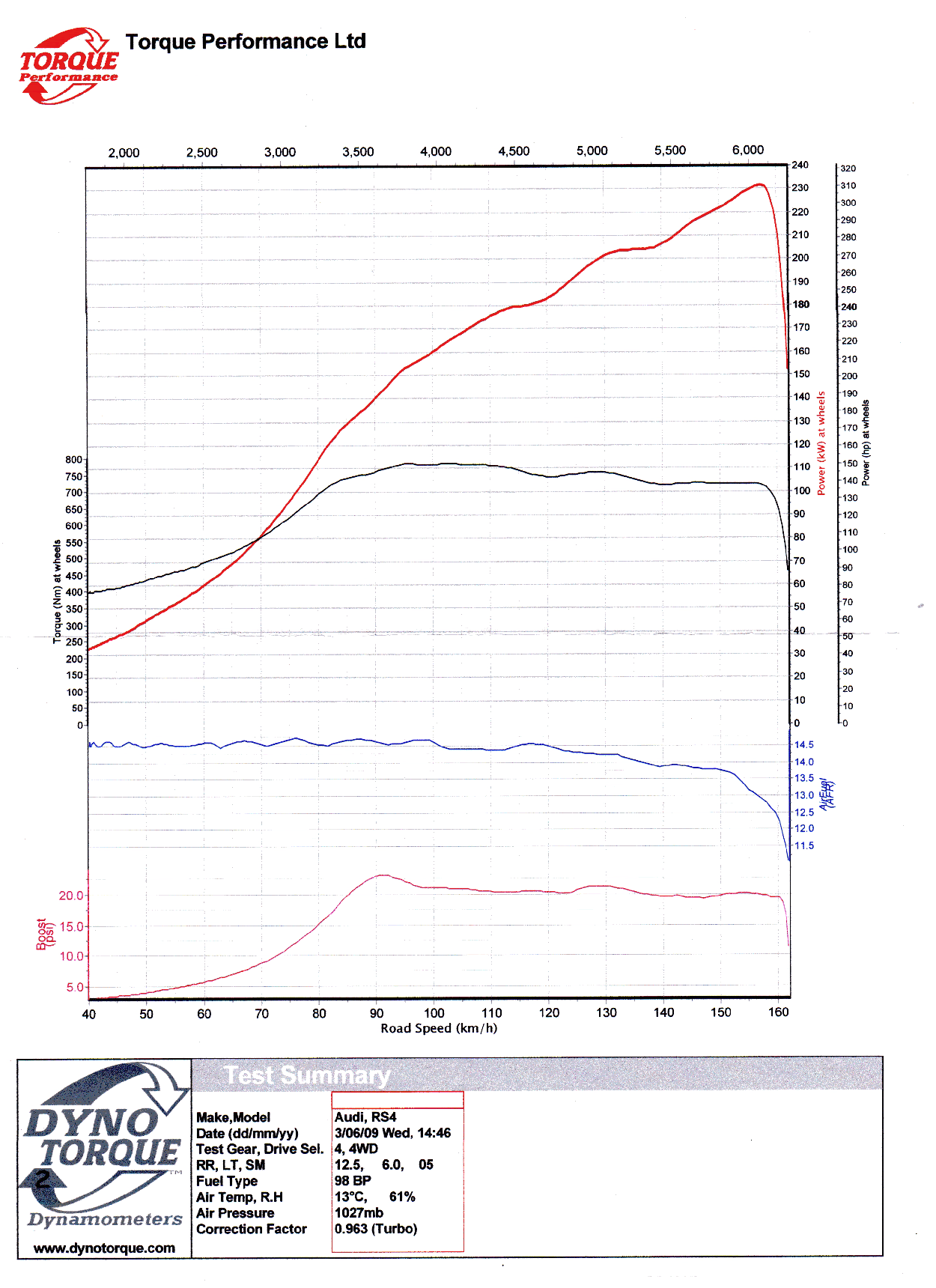

Torque Performance offered me a free run on their dyno. This is still with the previously remapped ECU. You can see how the fuelling stays close to lambda=1 throughout the run. I stress this is exactly what the factory tune does as well, but many tuners prefer to go open loop and run richer at WOT to keep things cooler. More on this later. I think it’s OK for stage 1, but probably not ideal. Depends who you talk to I guess.



Here is a quote from page 45 of the 2.7TT Self Study Guide:
Quote
The Motronic controls the exhaust gas temperature to 980 °C by enriching the air/fuel mixture .
It is therefore possible to largely dispense with the prophylactic enrichment process that has been standard practice until now.
The mixture is only enriched...

... when necessary and
... to the extent necessary.
This means that engine operation with lambda = 1 is possible up to high load and engine speed ranges.

Advantage:

• Improved efficiency and reduction of fuel consumption as well as exhaust emissions

So basically it’s an efficiency/emissions driven ideology. You can read the full study guide here if you want to: http://www.ibiblio.org/tkan/audi/2.7Biturbo-SelfStudy.pdf
« Last Edit: December 01, 2017, 02:13:38 pm by le mans »
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #12 on: March 22, 2016, 03:08:11 pm »
Oct 2009

Bought at installed a JHM SS kit:

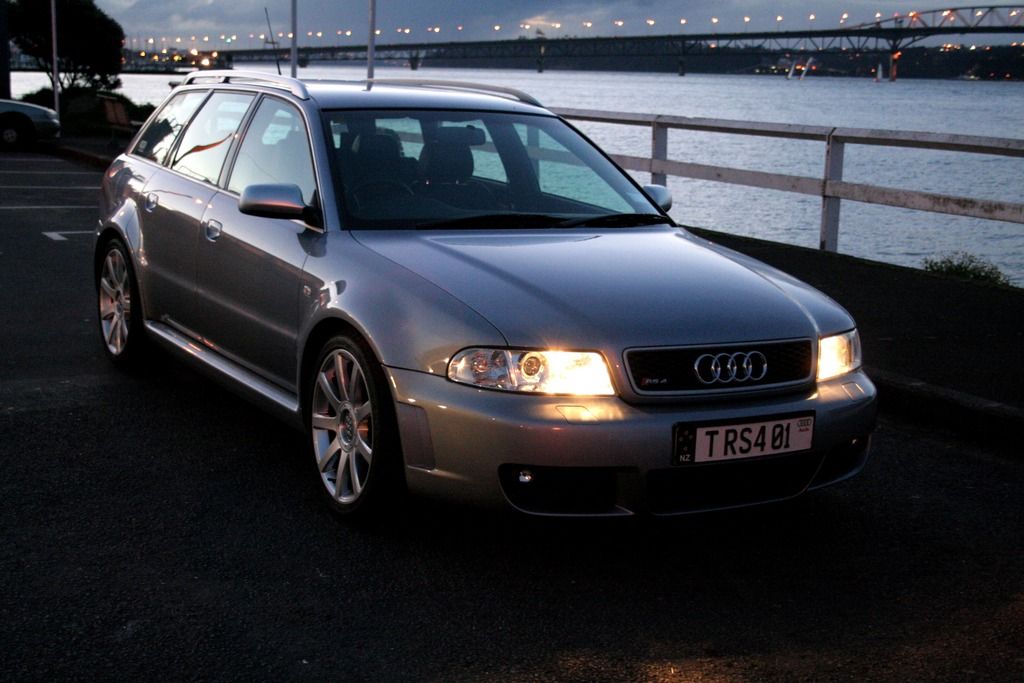

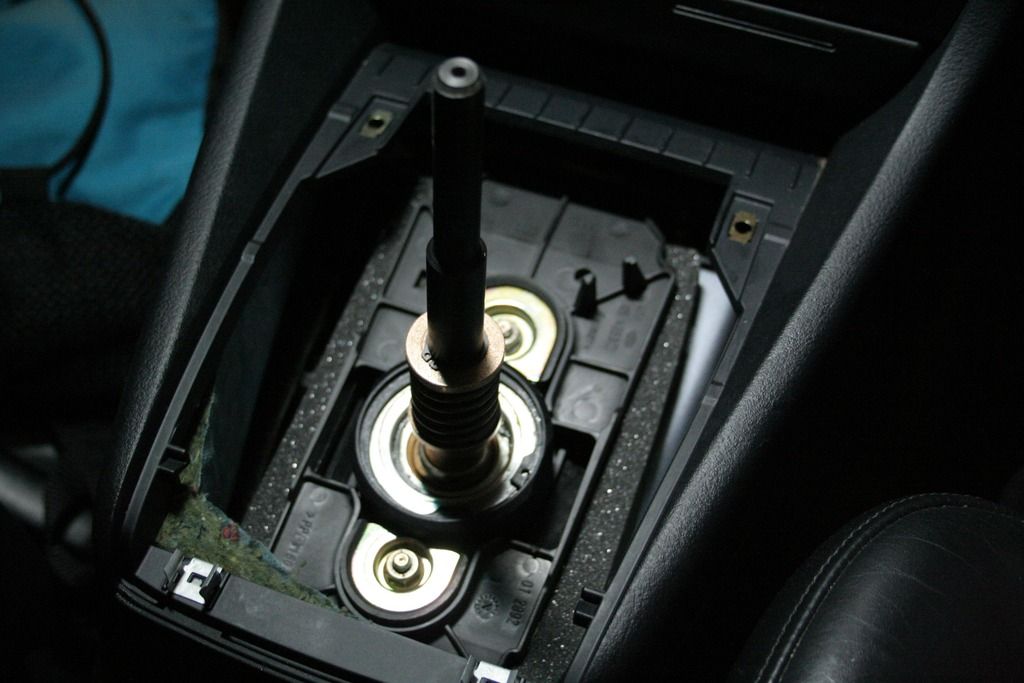

Makes the gear changes much tighter. Then tested the shifter and took a quick couple of photos:

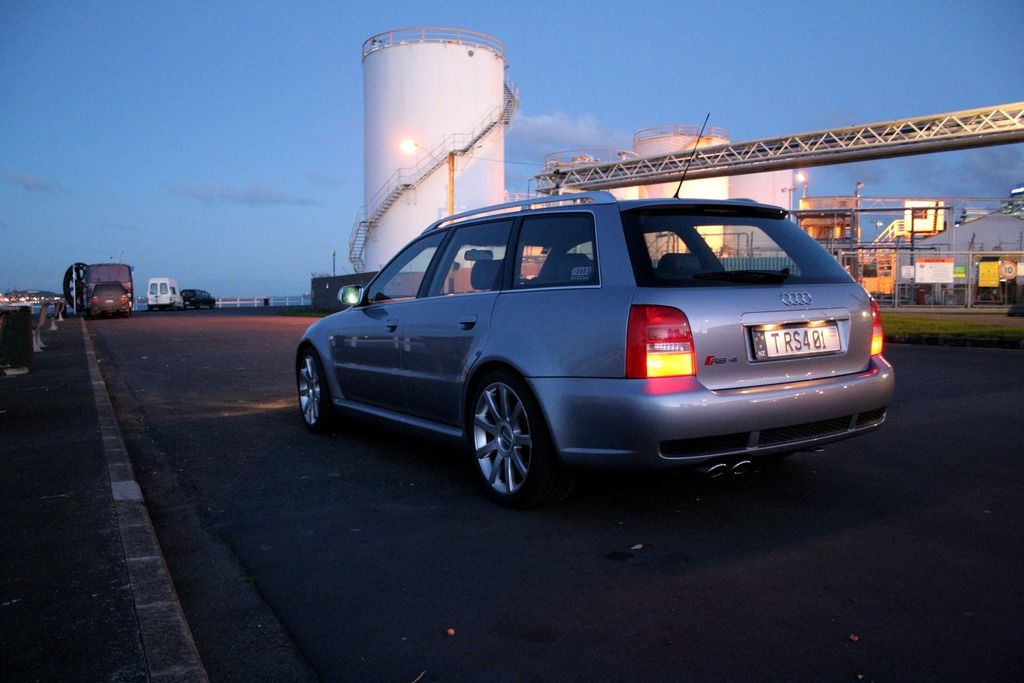

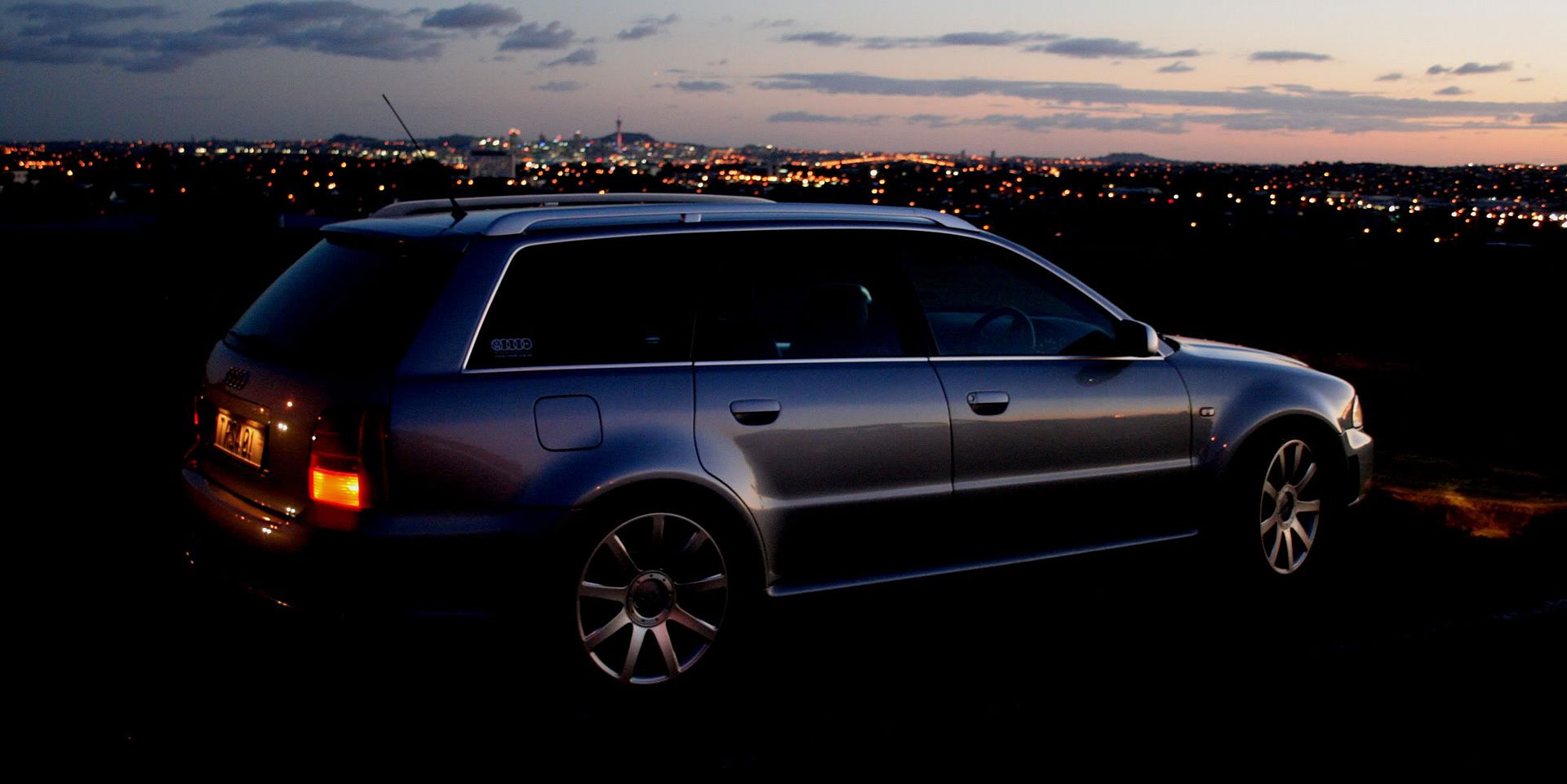

North Shore @ dusk:



I also had the ECU returned to factory tune.
« Last Edit: January 08, 2019, 11:23:17 am by le mans »
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #13 on: March 22, 2016, 03:10:02 pm »
Jan 2010

Took delivery of Bilstein B16 PSS9 adjustable suspension. At the time widely regarded as the best bang for buck suspension kit available for the B5.

« Last Edit: July 15, 2017, 03:58:16 pm by le mans »
Logged

Offline Poonmobile

  • ##
  • **
  • Posts: 4376
  • a.k.a Ash
Re: 2001 Audi RS4 Avus Silver
« Reply #14 on: March 23, 2016, 01:10:38 am »
Nice Jon, this reads as a wish list for any B5 Rs4 owner!
Logged
Current:
06 NZ B7 RS4 Avus Silver, 01 NZ B5 RS4 Avus Silver, 93 NZ VR6 Tornado Red 3dr, Renault Clio 172 & Renault Clio 197
Past:
MK2 VR6, MK5 GTI, 2 x MK5 R32, 8L S3 Imola, MK4 Golf V6 4MO, Polo GTI, 2x MK3 VR6, D2 S8, B5 S4 Avant, 03 NZ R32 Deep Blue Pearl, Renault Megane R26 liquid yello

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #15 on: March 23, 2016, 01:55:16 pm »
Dec 2010

Cat-back Supersprint exhaust from Italy. A bit $$$!





« Last Edit: July 16, 2017, 01:01:32 am by le mans »
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #16 on: March 23, 2016, 01:57:54 pm »
Jan 2011

Bought a RaceDiagnostics Liquid Multi-Gauge. Has basic diagnostic functions as well.

http://racediagnostics.com/shop/product_info.php?cPath=1_29&products_id=48

After I got it installed I did a little review:

https://youtu.be/y3KC8jUIO68
Logged

Offline le mans

  • ##
  • **
  • Posts: 2811
Re: 2001 Audi RS4 Avus Silver
« Reply #17 on: March 23, 2016, 02:05:26 pm »
Mar 2016

Just maintenance and occasional driving since then, not daily these days.

« Last Edit: July 15, 2017, 03:42:54 pm by le mans »
Logged

Offline Poonmobile

  • ##
  • **
  • Posts: 4376
  • a.k.a Ash
Re: 2001 Audi RS4 Avus Silver
« Reply #18 on: March 25, 2016, 11:02:20 pm »

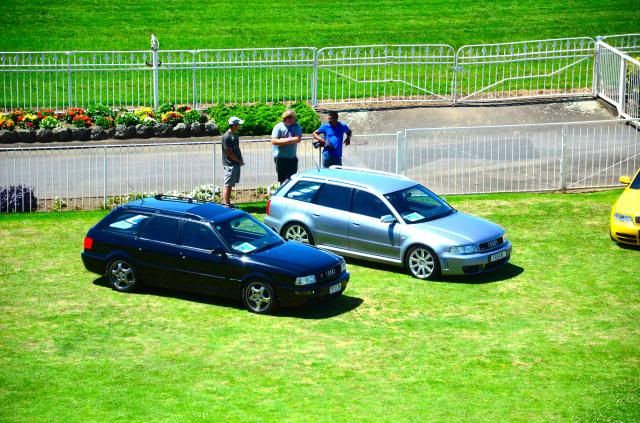

Found a concours pic from 2014

Logged
Current:
06 NZ B7 RS4 Avus Silver, 01 NZ B5 RS4 Avus Silver, 93 NZ VR6 Tornado Red 3dr, Renault Clio 172 & Renault Clio 197
Past:
MK2 VR6, MK5 GTI, 2 x MK5 R32, 8L S3 Imola, MK4 Golf V6 4MO, Polo GTI, 2x MK3 VR6, D2 S8, B5 S4 Avant, 03 NZ R32 Deep Blue Pearl, Renault Megane R26 liquid yello

Offline GorGasm

  • Posts: 62
Re: 2001 Audi RS4 Avus Silver
« Reply #19 on: March 28, 2016, 08:39:11 am »
Somewhat envious, sure i have seen this around in AKL many times.  Nice work.
